KM400-M Deluxe (Acer Aspire T120) mATX FUNKČNÍ

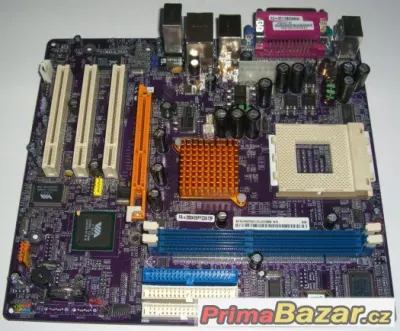

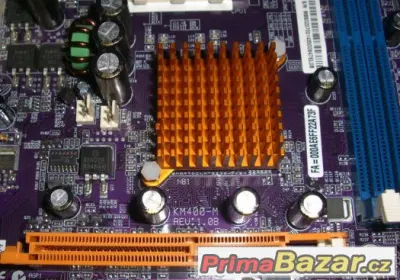

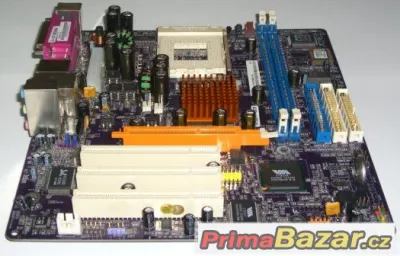

Nabízím funkční základní desku KM400-M Deluxe, REV:1.0B (Acer Aspire T120)
se socketem 462, pro procesory AMD založená na čipsetu VIA KM400. Včetně CD s ovladači, BIOS, mánualy a utility. Deska je určena pro procesory AMD Sempron, Athlon XP, Athlon a Duron s FSB (100/133/166) 200/266/333 MHz.

Specifikace výrobce:

CPU
- Socket 462 for AMD Athlon™ XP/ Sempron™/ Athlon™/ Duron™ processor
- FSB 333/266/200 MHz

CHIPSET
- VIA® KM400 & VT8235CE
- North Bridge: VIA® KM400
- South Bridge: VIA® VT8235CE

GRAPHICS
- Integrated S3 UniChrome 2D/3D Graphics

MEMORY
- 2 x 184-pin DDR DIMM socket support up to 2 GB
- Support DDR333/266/200 DDR SDRAM

EXPANSION SLOT
- 1 x AGP 8X/4X slot
- 3 x PCI slots

STORAGE
- Support by VIA® VT8235CE • 4 x Ultra DMA133/100/66 devices

AUDIO
- Realtek ALC655 6-Channel audio CODEC
- Compliant with AC97 2.3 specification

LAN
- Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller

REAR PANEL I/O
- 1 x PS/2 keyboard & PS/2 mouse connectors
- 4 x USB ports
- 1 x RJ45 LAN connector
- 1 x Parallel port (LPT1)
- 1 x Serial port (COM1)
- 1 x VGA port
- 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS
- 1 x 20-pin ATX Power Supply Connector
- 1 x FDD connector supports one 360K~2.88MB FDD
- 2 x IDE connectors
- 1 x USB 2.0 header support additional 2 USB ports
- 1 x SPDIF out header
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- CD in/ AUX in headers
- CPUFAN/NB_FAN/CASFAN connectors

SYSTEM BIOS
- Award BIOS with 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR
- Micro-ATX Size, 244mm*220mm

Způsob předání:
Osobně (Praha 4, Roztyly) nebo poštou

Kontakt:
MOBIL: 608799514
EMAIL: maxgross@seznam.cz
